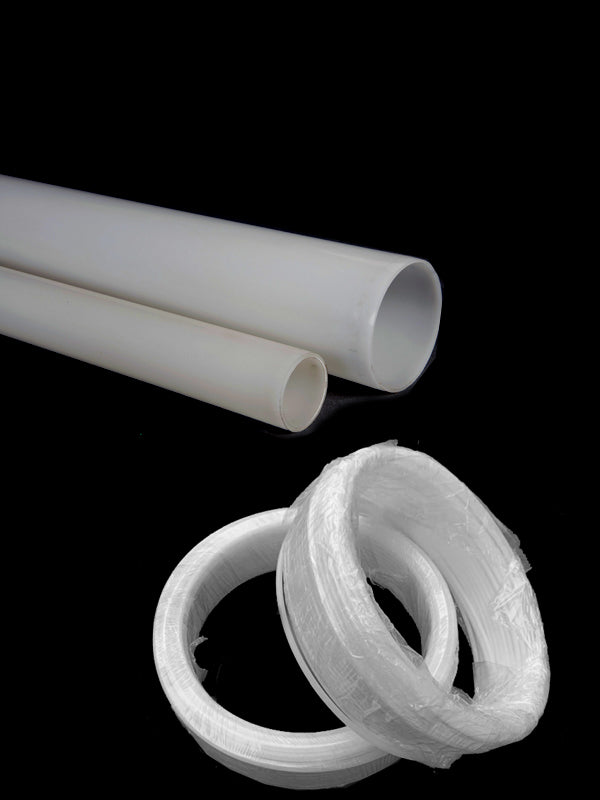

PVDF (polyvinylidene fluoride ) Tube

PVDF tube is a high-performance engineering plastic piping material. At room temperature, its pressure ratings include PN10, PN16, etc., specifically adjusted based on pipe diameter and temperature. PVDF tubing is used in a variety of industries such as aerospace, semiconductor, medical, automotive, fiber optics and marine tanks. PVDF's upper use temperature of 250°F is lower than PFA; however, it is the material of choice in high purity and chemical resistance applications such as critical fluid handling, pharmaceutical and air/water environmental sampling, heat transfer and where cost is more sensitive than PFA.

Material: Polyvinylidene fluoride

Color: Natural white

Standard size

Other sizes can be customized according to requirements, Please contact us before ordering.

Performance Characteristics

• Chemical corrosion resistance: Withstands strong acids, alkalis, halogens, And organic solvents.
• High-temperature resistance: Long-term service temperature range of -40°C to 150°C, with short-term exposure up to 175°C.
• Mechanical properties: High impact strength, wear resistance,excellent flexibility, and suitability for complex piping layouts.

• Semiconductor cleaning equipment: Smooth inner walls minimize particle contamination, ensuring wafer purity.
•  Ultra-pure water systems: Transports high-purity water while preventing ionic contamination.
• Chemical processing equipment: Transmits corrosive media in high-pressure, high-flow environments.
