PTFE(Teflon) White Vrigin Natural Corrugated Hose Convoluted Tubing Braided Convoluted PTFE Hose

PTFE Corrugated Hose are widely used industrial components. They are formed by heating the tube to a specific temperature in a mold, applying internal pressure to induce lateral expansion (blowing), followed by cooling to set the shape. These tubes are valued for their exceptional flexibility, temperature resistance (-65°C to +260°C), and chemical inertness. While the minimum bending radius increases with tube diameter, they remain non-flexible post-forming.

Material: Polytetrafluoroethylene(PTFE)

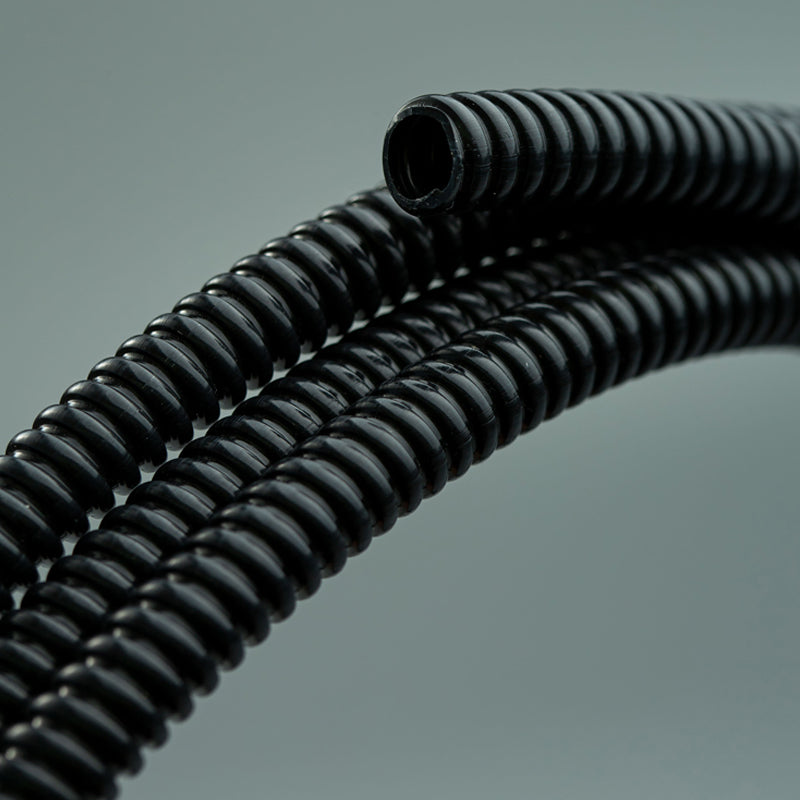

Color: White, Black

Standard size

We supply

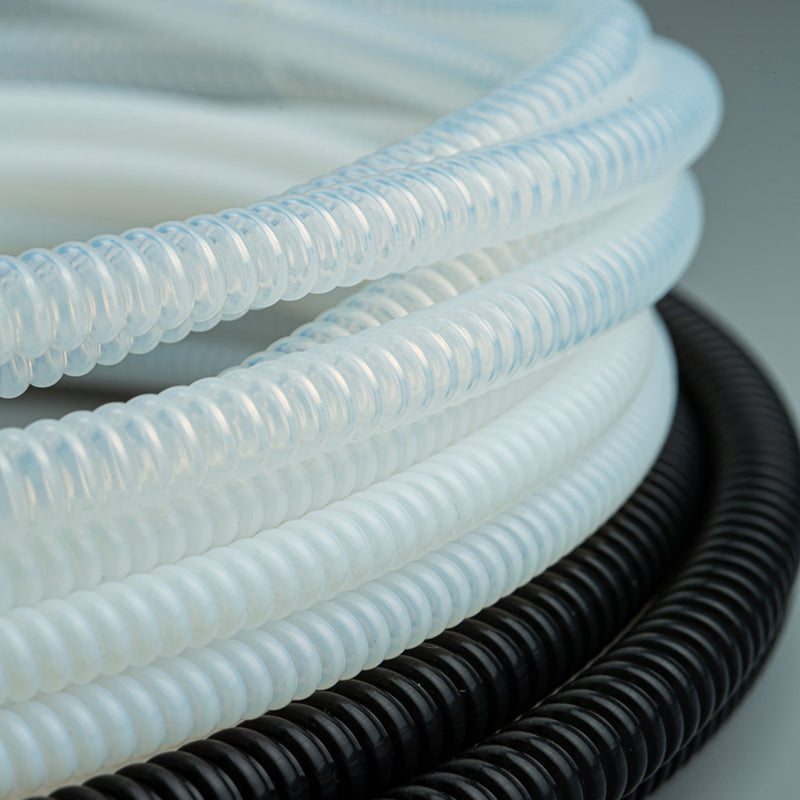

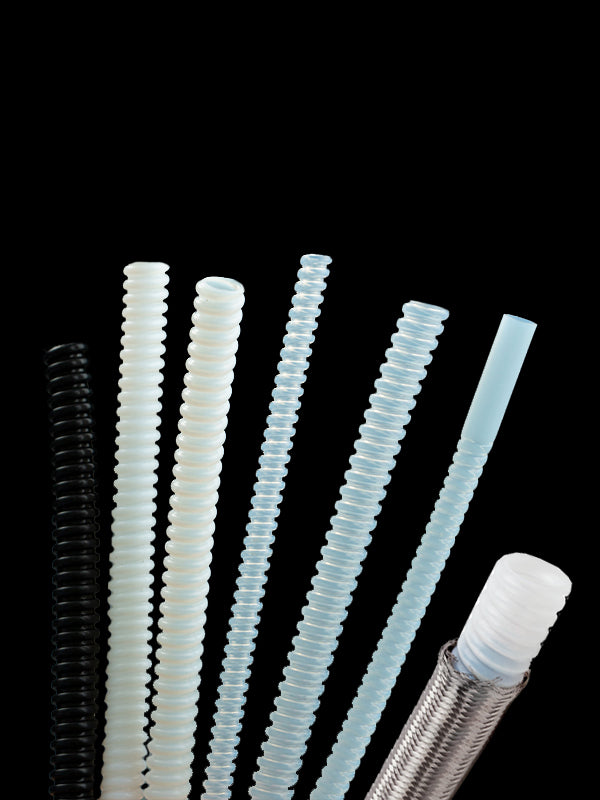

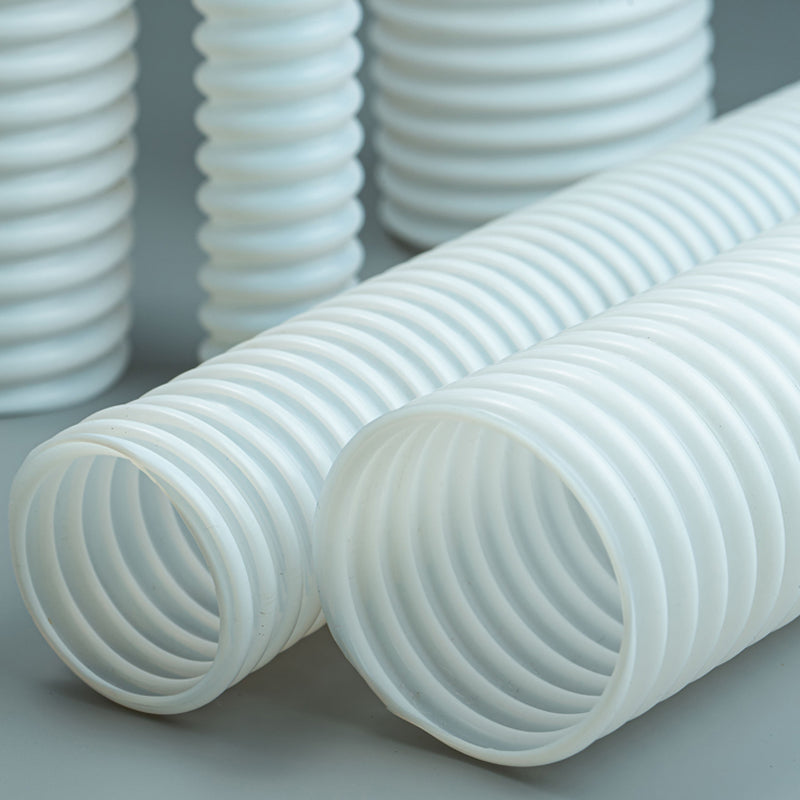

• PTFE Corrugated / Convoluted Tubing

• PTFE Coiled Tubing
• PTFE Flexible Tubing
• Flange end is available
• PTFE Braided Convoluted PTFE Hose
• With/without  flange / s.s 304 braiding
• With s.s.304 braiding and EPDM

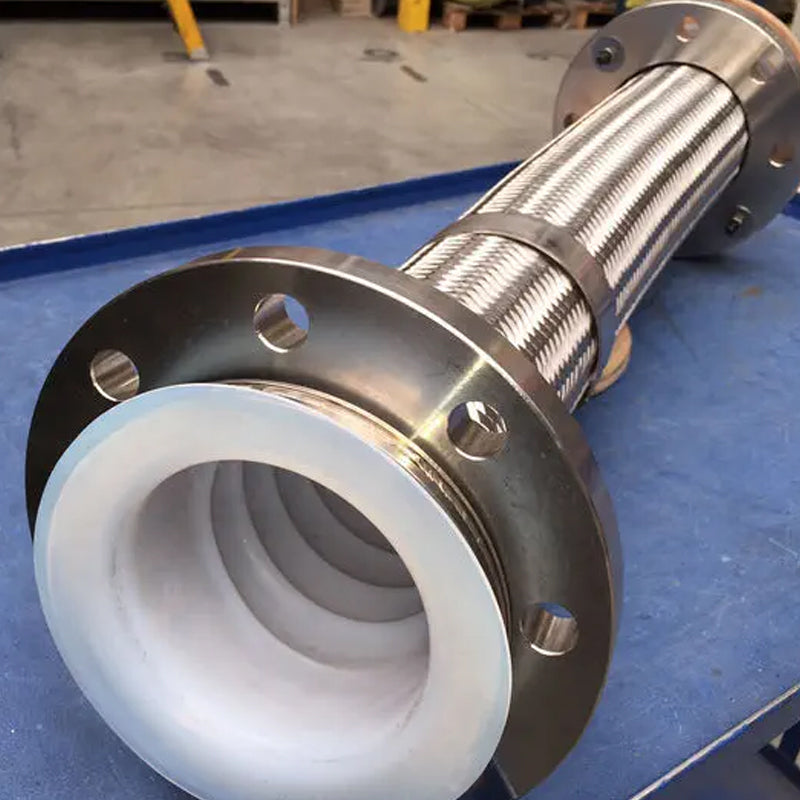

• CT type with loose flange
• MCT with flange fixed and covered by TK 1mm S.S.304 wire-mesh
• Flange standard : ANSI CLASS 150 / JIS 10K / PN16


Custom diameters, lengths, and fittings (cuffs, flanges, flares) are available.

Our products comply with FDA, SGS, and ISO 9001:2008 standards.

We source PTFE resins from top suppliers like DuPont, 3M, Daikin, and leading Chinese brands.

Installation options include flanged, socketed, threaded, quick-connect, or direct tube fittings secured with clamps/wire.

Please contact us to explore tailored solutions for your needs.

Ideal for harsh environments, PTFE convoluted tubes are chemically inert, non-flammable, and suitable for transporting highly corrosive materials. They are extensively used in semiconductors, aerospace, automotive, electrical, food/medical, chemical, petrochemical, automation, and laboratory equipment industries.

All convoluted PTFE tubes feature antistatic linings (unlike traditional PTFE liners), safely dissipating static buildup during transport of high-resistance fluids (e.g., solvents, fuels).

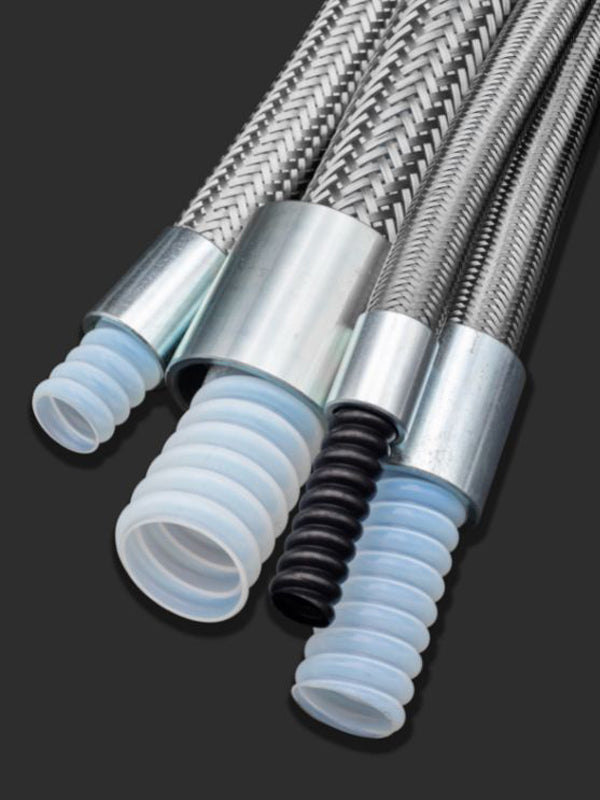

Enhanced Options: Stainless Steel Braided PTFE Hoses
For maximum pressure resistance, chemical compatibility, and physical durability, Best Fluoron’s stainless steel braided PTFE hoses are recommended. Reinforced with 304/316 stainless steel braiding, these hoses withstand high pressures, extreme temperatures, and mechanical impacts (abrasion, crushing).
