PTFE White Vrigin Natural Square Rod Bar Custom Size

Material: Polytetrafluoroethylene(PTFE)

Color: White

MADE TO ORDER (please contact us before ordering)

• Custom Diameters or Length

Filling with copper powder, carbon powder, graphite, glass fiber, molybdenum disulfide etc.

Please send us your inquiry. And please try to indicate the addition amount and the usage scenario so that we can better recommend products for you.

Performance Characteristics

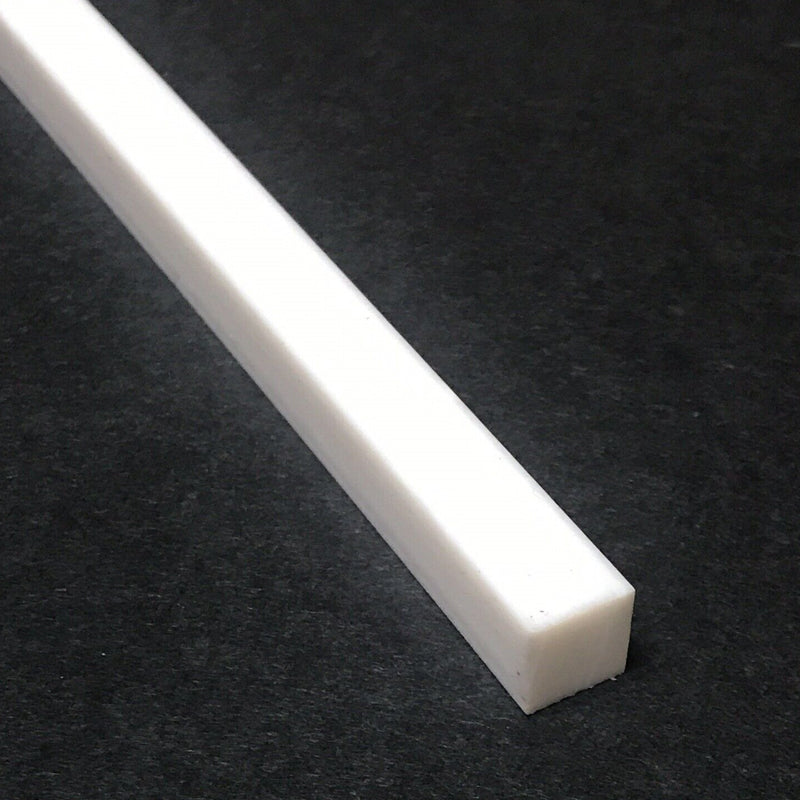

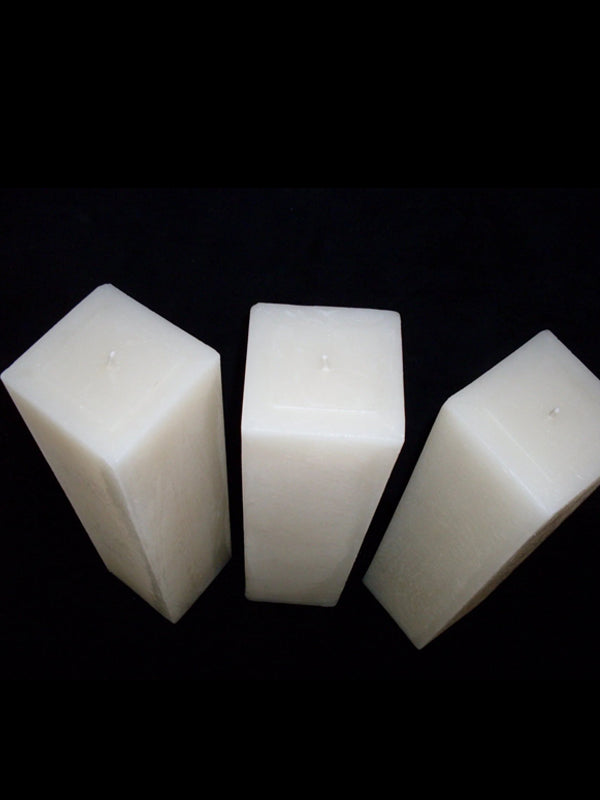

PTFE Square Bar
Featuring a uniform square cross-section design, it demonstrates significant structural advantages over round rods:
1) 30% larger contact area enhances interfacial adhesion;
2) 40-50% higher torsional stiffness due to increased second moment of area.
Primarily used in industrial applications requiring strict deformation tolerance (±0.05mm), such as precision machinery guide rails and semiconductor equipment support frames.

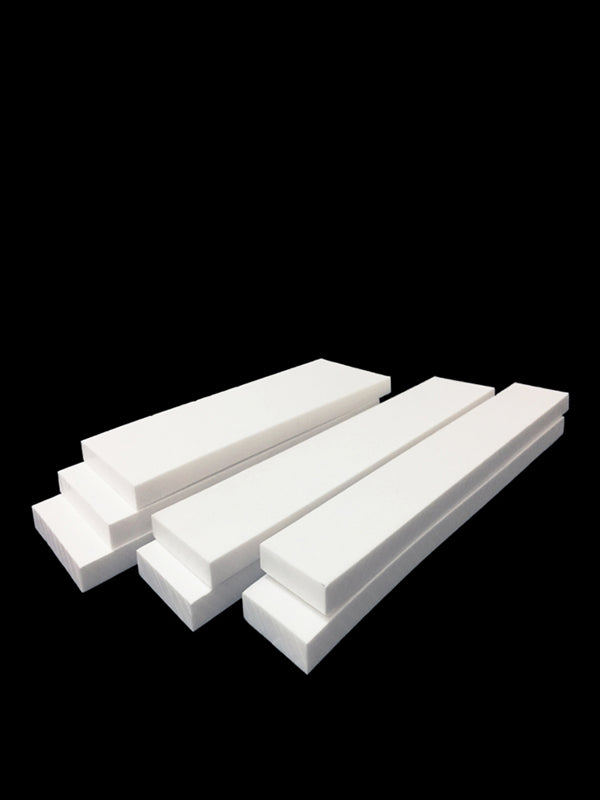

PTFE Rectangular Bar
Engineered with an asymmetric cross-section design, customizable for width-to-thickness ratios (1:2 to 4:1). Its linear contact characteristics deliver:
1) 25 MPa ultimate compressive strength with optimized load distribution;
2) Stable friction coefficient (0.05–0.1) for enhanced interface compatibility.
Typical applications include wear-resistant guides for heavy machinery (ASTM D1044) and high-voltage insulation liners (IEC 60243 certified).

Note: Data conforms to ISO 527 mechanical testing standards. Operating temperature range: -200℃ to +260℃.

Key Features

Precision Metrics: Quantified performance parameters (e.g., stiffness, compressive strength) align with industrial certification requirements.

Material Adaptability: Maintains dimensional stability across extreme temperatures (-200℃ to +260℃).

Customization: Supports tailored geometry for application-specific mechanical and tribological demands.
